Name: 225mm Speed Pro EN2 General Purpose Wall Tie Stainless Steel
SKU: H003119
Availability: InStock

225mm Speed Pro EN2 General Purpose Wall Tie Stainless Steel

Ex. VAT: £22.00

Inc. VAT: £23.10

2 - 3 Working Day Delivery

SKU#: H003119

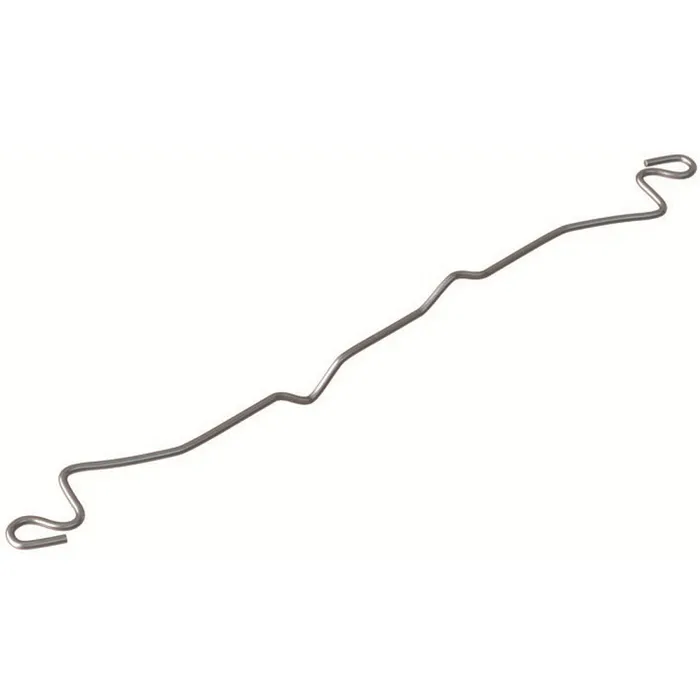

This Speed Pro 225mm General Purpose Wall Tie connects two leaves of a cavity wall to enhance structural stability and prevent moisture transfer. The Type 2 wall tie is suitable for buildings up to 15m in height.

Key Features

Has a multi-drip design to prevent moisture travelling across the cavity to the inner leaf
Helps maintain cavity width to prevent bridging
Made of corrosion-resistant stainless steel
For buildings up to 15m in height
Can be installed either way up
Connects two cavity leaves
Enhances building stability

*Shipping cost calculated in the basket

Description

Technical Information

Compressive Load Capacity: 1321 N
Tensile Load Capacity: 2419 N
Cavity Width: 76-100mm
Material: Stainless Steel
Brand: Speed Pro
Length: 225mm

Approvals

BS EN 845-1
CE

Installation Instructions

Cavity wall ties should be fitted at a minimum density of 2.5 ties per m², usually spaced 900mm horizontally and 450mm vertically, with a staggered layout for even support. Around openings and unbonded edges, use extra ties every 300mm in height (often aligning with 225mm block courses). Always refer to current building regulations to confirm compliance for your project
Embed the ends of the wall tie in a mortar course
